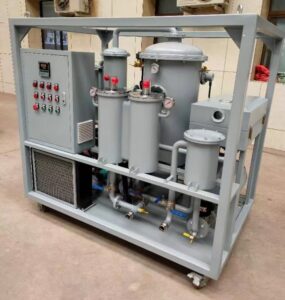

DLT Series units are multifunctional vacuum oil filter systems that offer a three dimension fine oil filtration. They can remove, water, gas and solid impurities from the hydraulic or lubrication oil. They utilize oil heaters, evaporation technology and a sophisticated multi stage filtration process that includes a unique paper-like patented super fine filter. DLT Series units capacity starts from 20 L per minute up to 300 L per minute.
DLT Oil Filtration Unit will not only save costs, but also protects the environment.
Fields of application: Hydraulic oil, Lubrication oil, Transformer oil, Turbine oil, Compressor oil, Insulating oil, etc.
CHARACTERISTICS
FLOW: 20L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN25/DN25
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 23kW
WEIGHT: 250 kg
DIMENSIONS: 1000*800*1400mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1
CHARACTERISTICS
FLOW: 30L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN25/DN25
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 25kW
WEIGHT: 320 kg
DIMENSIONS: 1000*800*1500mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%
CHARACTERISTICS
FLOW: 50L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN32/DN32
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 45kW
WEIGHT: 580 kg
DIMENSIONS: 1200*900*1500mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%
CHARACTERISTICS
FLOW: 100L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN40/DN40
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 65kW
WEIGHT: 800 kg
DIMENSIONS: 1500*1100*1700mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%
CHARACTERISTICS
FLOW: 150L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN50/DN50
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 86kW
WEIGHT: 900kg
DIMENSIONS: 1700*1200*1800mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%
CHARACTERISTICS
FLOW: 200L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN50/DN50
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 108kW
WEIGHT: 1000kg
DIMENSIONS: 1800*1300*1900mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%
CHARACTERISTICS
FLOW: 300L/min
VACUUM: -0.06MPa∽-0.09MPa
OIL TEMPERATURE: 20-80 C
NOISE LEVEL: 75dB(A)
LIFT HEAD: ≥5m
STRUCTURE TYPE: Chassis Mobile
PRESSURE: ≤0.4MPs
OIL IN/OUT PIPE DIAMETER: DN65/DN65
POWER SUPPLY: 380V-50HZ/440V-60HZ
TOTAL POWER: 160kW
WEIGHT: 1200kg
DIMENSIONS: 2000*1500*2100mm
PARAMETERS AFTER OIL FILTERING
WATER CONTENT IN OIL: ≤100PPM
FILTRATION ACCURACY: ≤5μm
CLEANLINESS: ≤6-8 NAS class
GAS CONTENT IN OIL: ≤0.1%

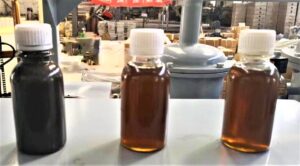

We have conducted a comprehensive test report about the function and results of our oil filtration units. The report was conducted by independent engineers and the results were provided by a specialized, authorized laboratory. Click on the picture to read the complete report.
